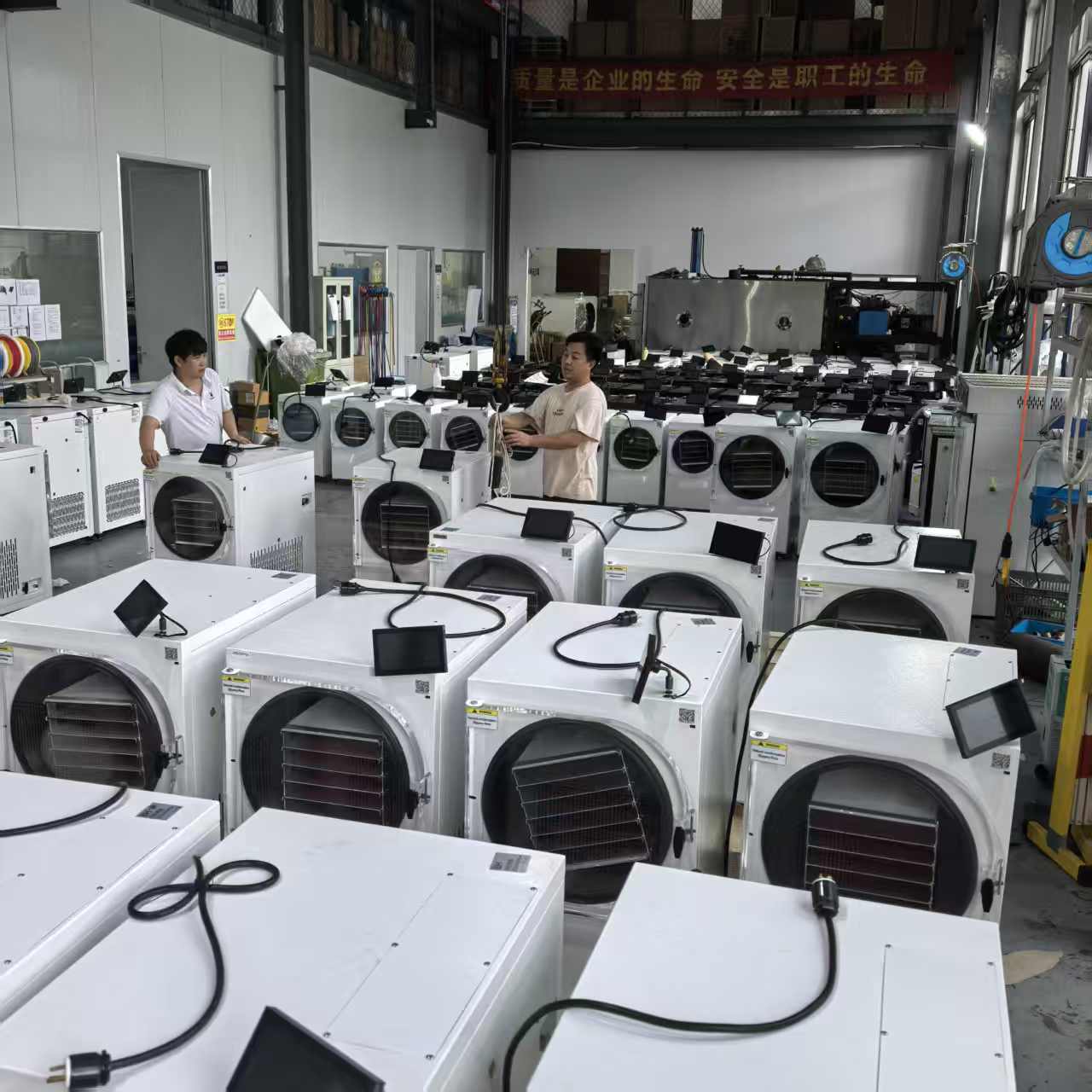

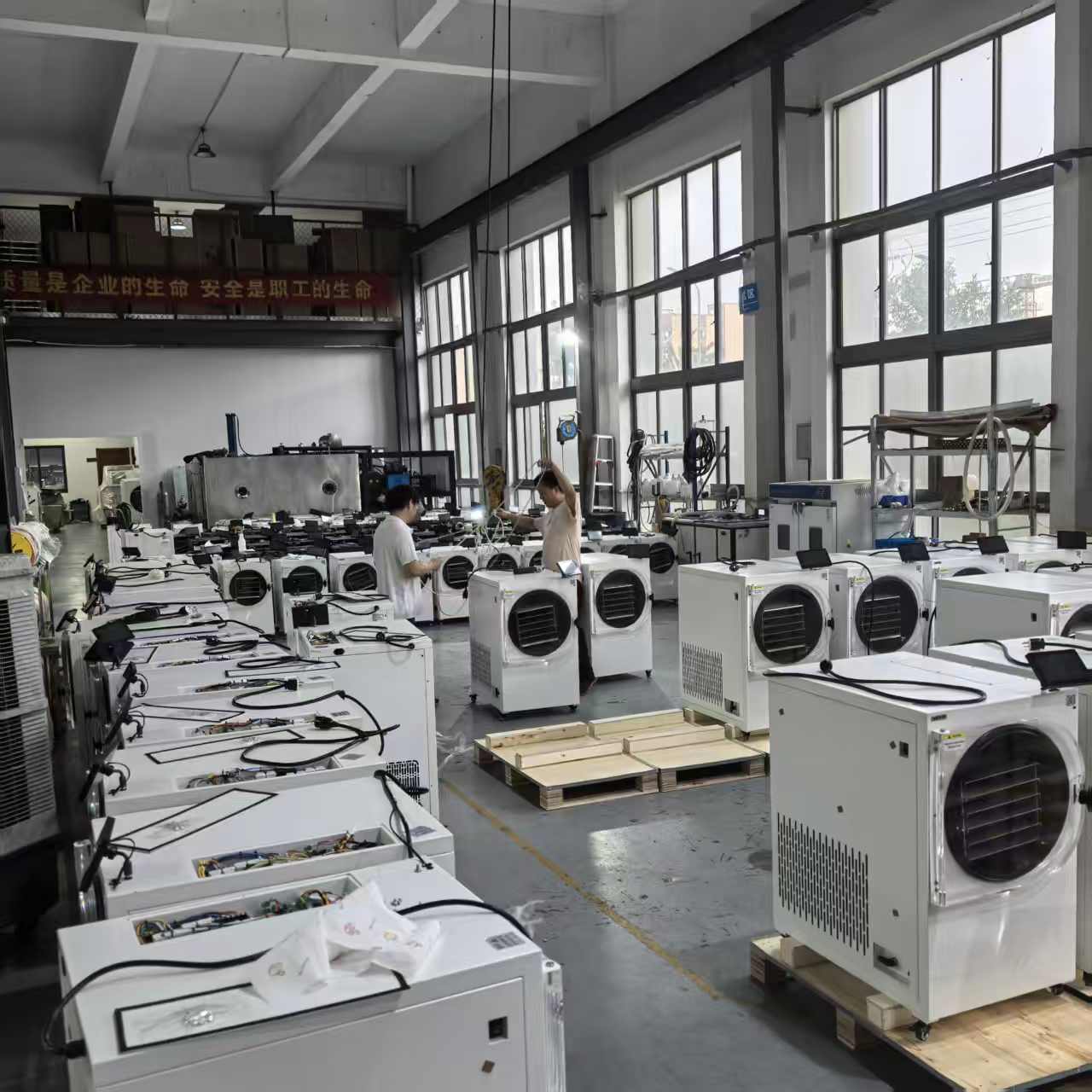

A farm, startup or small food producer usually needs a machine that fits the room, electrical service, product trials and weekly packing rhythm. A larger chamber is not automatically the safer purchase. This guide uses a company-confirmed 136-unit H Series batch prepared for United States and European orders to show which decisions should be closed before a compact food freeze dryer leaves the factory.
Equipment and application views
Choose 05H, 08H or 10H from the tray job
Begin with one representative product. Record prepared fresh weight, cut or piece size, kilograms per tray, number of trays, initial moisture where known, pre-freezing method and the target package. Compare machines using usable tray area and a conservative loading depth.
SJ-05H is the smaller entry point for recipe work and limited weekly output; SJ-08H adds loading room for growing batches; SJ-10H supports larger repeat runs. These are selection directions, not universal kilogram guarantees. Product water content and complete turnaround can move the practical result.
Close the installation details before packing
Confirm country, voltage, phase, frequency, circuit or disconnect requirement, plug or hard-wire arrangement, room ventilation, clearance, drain handling and vacuum-pump exhaust. Ask for running and startup requirements for the exact configuration.
A U.S. order and a European order may look similar in a factory row but require different electrical parts, markings and documents. The signed order should state the applicable scope; a batch destination does not mean every machine has an identical certification status.
Make the pre-delivery check visible and repeatable
Match the model and serial number to the order, then inspect the chamber, door, gasket, tray set, drain, vacuum connections, controls and accessories. Record refrigeration pull-down, an empty-system vacuum check, alarms and the agreed recipe or manual functions.

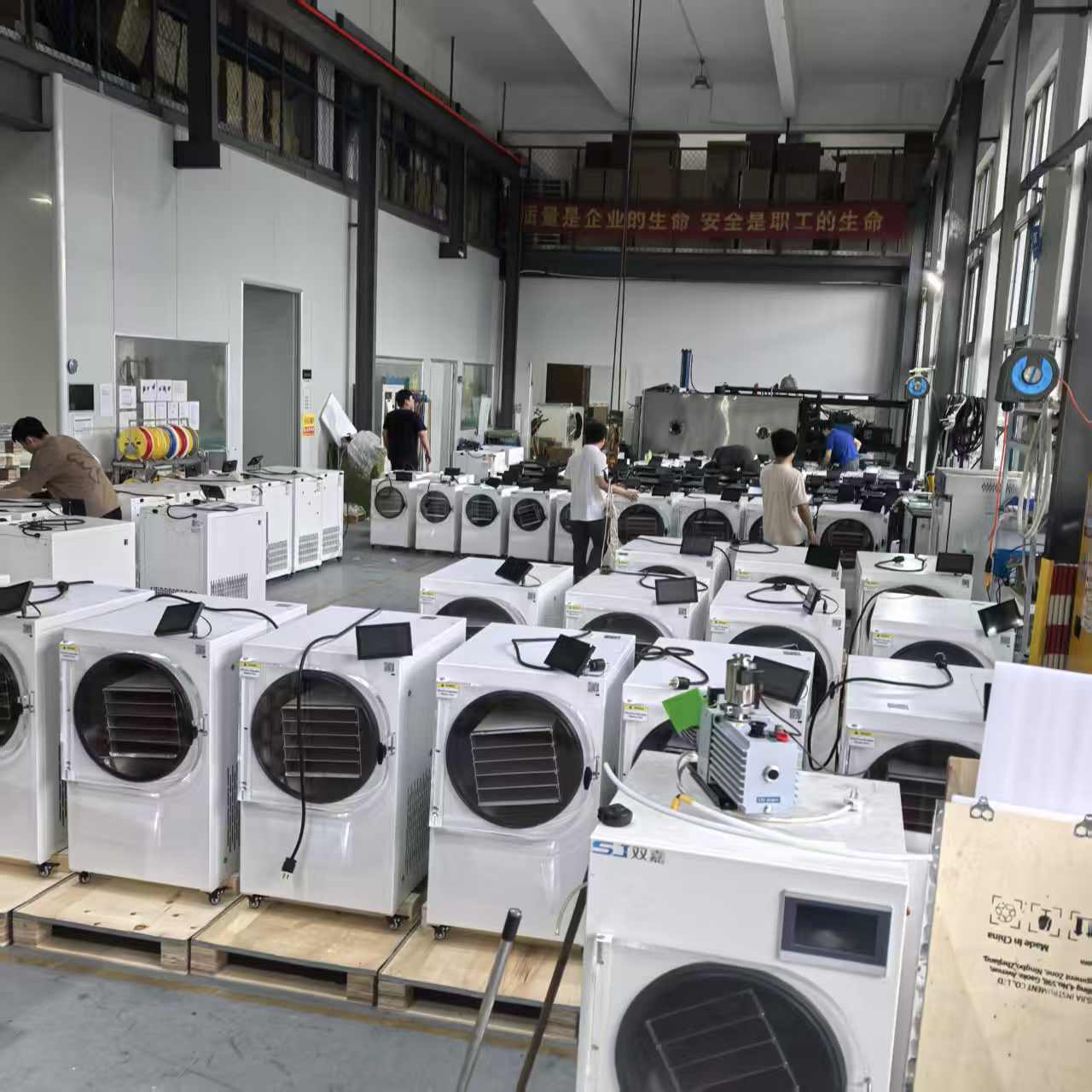

Ask for dated photos or video of the identified machine where practical. The footage on this page documents the batch environment, not the full FAT result for an individual serial number.
Prepare the first product run before the crate arrives
Set aside a representative test load and freeze it fully using the planned pre-freezer. Prepare a loading sheet with product, cut size, fresh and tray weights, tray positions and recipe version. Avoid mixing fruit, candy and protein products while establishing the first baseline.
Have moisture- and oxygen-barrier packaging, labels and sealing settings ready before unloading. Dry food can absorb ambient moisture quickly, so the package workflow belongs in the equipment plan.
Know when compact capacity is no longer enough
Track full turnaround and saleable finished kilograms per week. If preparation, pre-freezing or packaging is the bottleneck, a larger dryer may not increase shipped product. Improve that step before adding chamber capacity.
When stable demand outgrows repeated compact batches, move the measured product, tray load, water removal and utility information into a commercial or industrial review. ArcticDry Tech covers larger cabinet and FFD planning without pretending that a small-machine recipe can be copied unchanged.
Frequently asked questions
Is SJ-10H always better than SJ-05H or SJ-08H?
No. The useful choice depends on tray load, product water, cycle turnaround, utilities, labor and weekly sales. Oversizing can add cost without fixing pre-freezing or packaging bottlenecks.
Does pre-delivery video replace a FAT report?
No. Video can confirm visible equipment and production status. The agreed inspection or FAT record should identify the machine, checks, conditions, results and open items.
Can one compact food freeze dryer process fruit, candy and pet treats?
The equipment may support multiple product families, but recipes, cleaning, food-safety controls and packaging should be developed separately for each product.
This page provides general engineering and operating context. The model-specific manual, approved site procedure, technical agreement and product validation take priority.
